GS insPIRe® S
Polyisocyanurate wall panel

GS insPIRe®  S wall panels are designed for external curtain walls and internal partition walls in skeletal structures. The panels can be installed both vertically and horizontally as single and multi-span wall elements. The plate cladding is galvanized steel sheet on both sides according to EN 10346 with organic polyester varnish with a coating thickness of 25 μm. The tightness of panel joints is ensured by the PUS polyurethane gasket applied at the production stage.

GO TO CONTACT

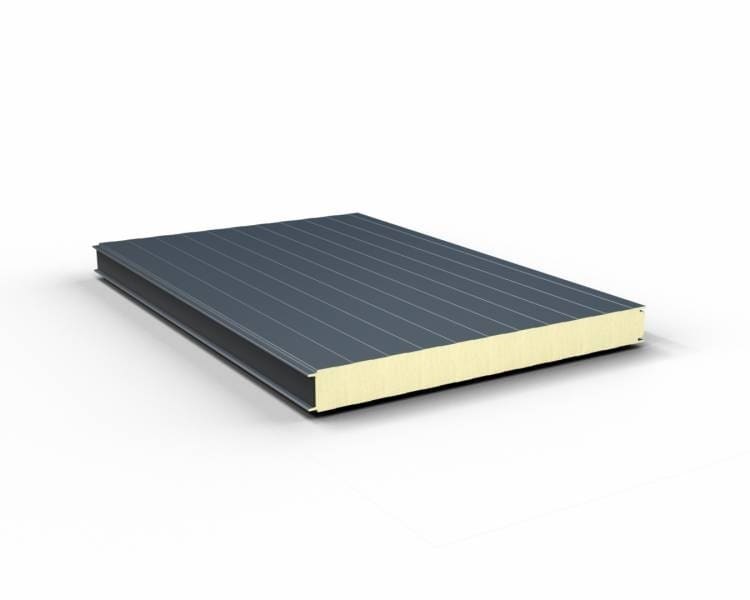

GS insPIRe® S Polyisocyanurate wall panel
GS insPIRe® S Polyisocyanurate wall panel
GS insPIRe® S

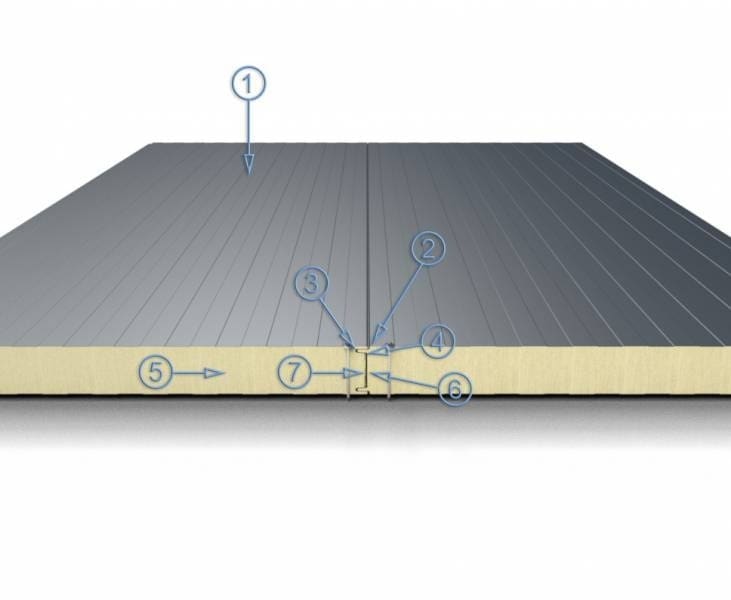

  • The profiling of the metal cladding makes the walls look aesthetically pleasing
  • A large radius of profiling of the lock ensuring the integrity of the protective coatings

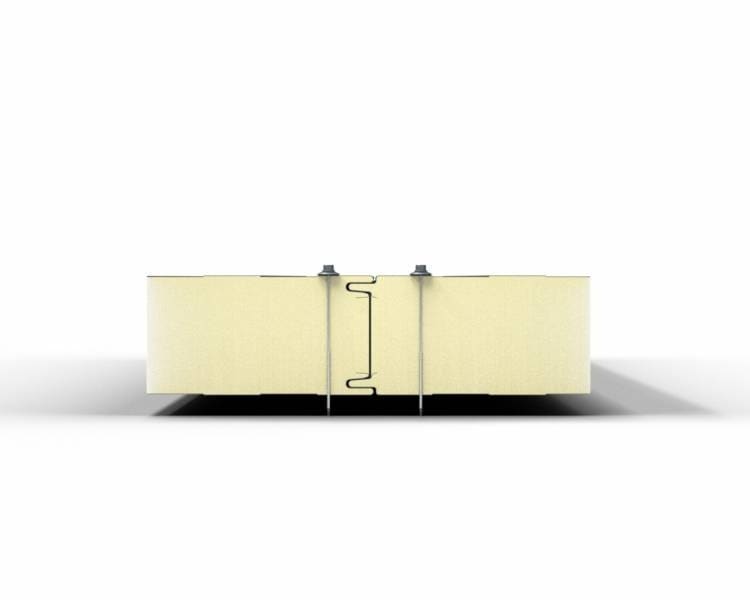

  • Double lock connecting the panels guaranteeing high fire integrity properties
  • Contoured edges facilitate assembly and increase thermal insulation
  • Core made of rigid PIR foam with very good thermal insulation and fire properties
  • Continuous polyurethane gasket maintaining high thermal insulation. It was applied during the production process
  • Aluminum foil prevents water vapor from entering the polyurethane foam core



1
Type of core​​
Rigid polyisocyanurate foam (PIR)
2
Declared heat transfer coefficient λD [W/m*K]
0,022
3
Thickness [mm]
40 60 80 100 120
4
Mass* [kg/m2]
10,0 11,0 11,8 12,6 13,4
5
Maximum length [m]
16,5
6
Total width [mm]
1020 / 1160 ( for thickness ≥ 60 mm and profilation L, M and F)
7
Modular width [mm]
1000 / 1140 ( for thickness. ≥ 60 mm and profilation L, M and F)
8
Exterior lining profiling for 1000 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy, R - Grooved, P - Flat
9
Exterior lining profiling for 1140 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy, P - Flat
10
Interior lining profiling
L - Linear, P - Flat
11
Standard exterior lining colors for 1000 mm modular widths **
RAL 7016 RAL 9002 RAL 9006 RAL 9010
12
Standard exterior lining colors for 1140 mm modular widths **
RAL 7016 RAL 9002 RAL 9006 RAL 9007 RAL 9010
13
Standard interior lining colors **
RAL 9002 RAL 9010
14
Ratio Ud,S [W/m2K] for PIR
0,60 0,38 0,28 0,22 0,19
15
Fire resistance classification ***
- - EI 20 EI 20 EI 30
16
Reaction to fire
B-s1, d0
17
Fire spread
Non Fire Spreading
18
Certificates, approvals, seals of approval

DWU CE according to EN 14509,
Hygienic Certificate,
Certificate of Business Continuity EN 14509,
Fire resistance classification

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

File Download
DoP(EN), GS insPIRe S, nr. 2022_03.pdf Download
