GS insPIRe® CH

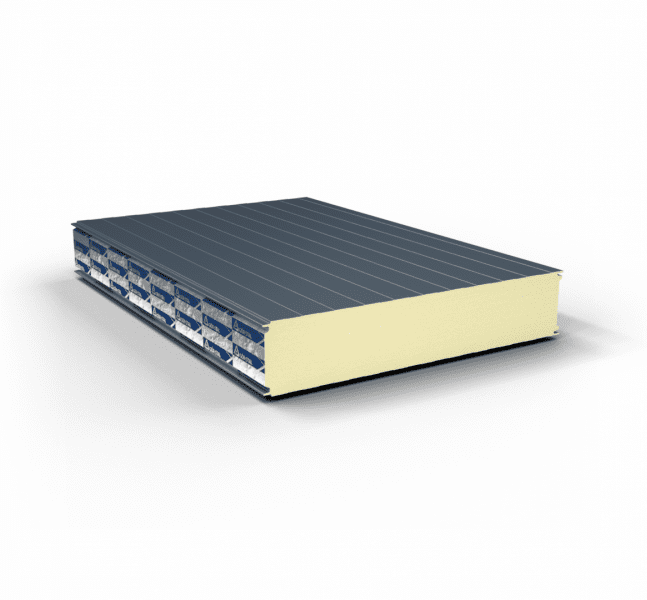

Polyisocyanurate cooling panel

The GS insPIRe®  CH cooling panel is designed for walls and ceilings in rooms with reduced temperature, i.e. in cold rooms (t> 0 °) and freezers (t <0 °) and other facilities with controlled temperature and humidity. The panels can be used to erect free-standing buildings and make cold rooms or freezers inside existing buildings. The panels can be mounted both vertically and horizontally as single and multi-span elements.

GO TO CONTACT

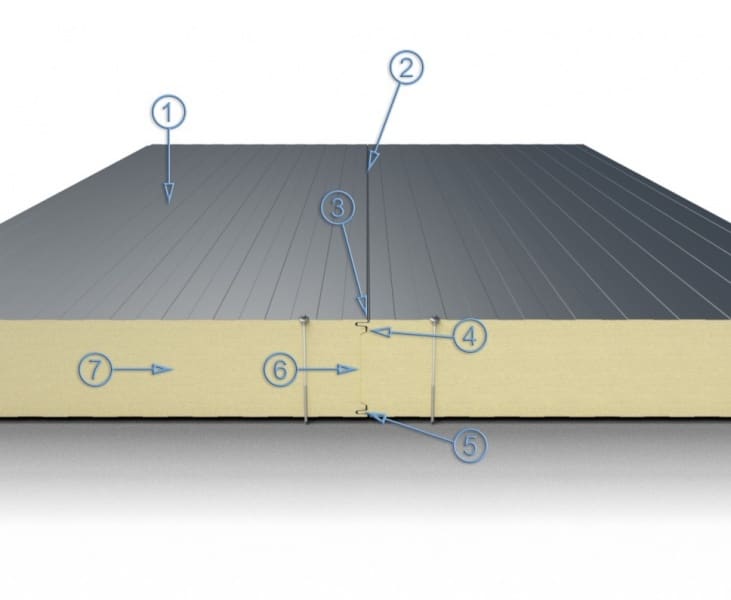

  • The profiling of the metal cladding makes the walls look aesthetically pleasing
  • Sealing compound applied at the construction site
  • A large radius of profiling of the lock ensuring the integrity of the protective coatings
  • Contoured edges facilitate assembly and increase thermal insulation

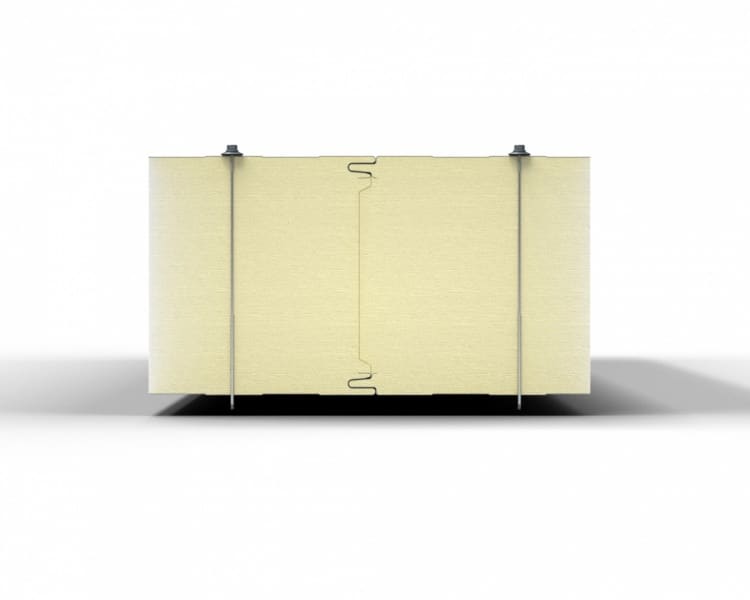

  • Double lock connecting the panels guaranteeing high fire tightness properties
  • Labyrinth core contact eliminating thermal bridge
  • Core made of rigid PIR foam with very good thermal insulation and fire properties
1
Type of core​​
Rigid polyisocyanurate foam (PIR)
2
Declared heat transfer coefficient λD [W/m*K]
0,022
3
Thickness [mm]
100 120 160 200
4
Mass* [kg/m2]
12,6 13,4 15,0 16,6
5
Maximum length [m]
16,5
6
Total width [mm]
1020 / 1160 ( for thickness ≥ 60 mm and profilation L, M and F)
7
Modular width [mm]
1000 / 1140 ( for thickness. ≥ 60 mm and profilation L, M and F)
8

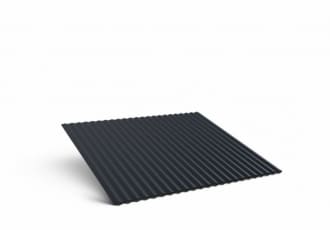

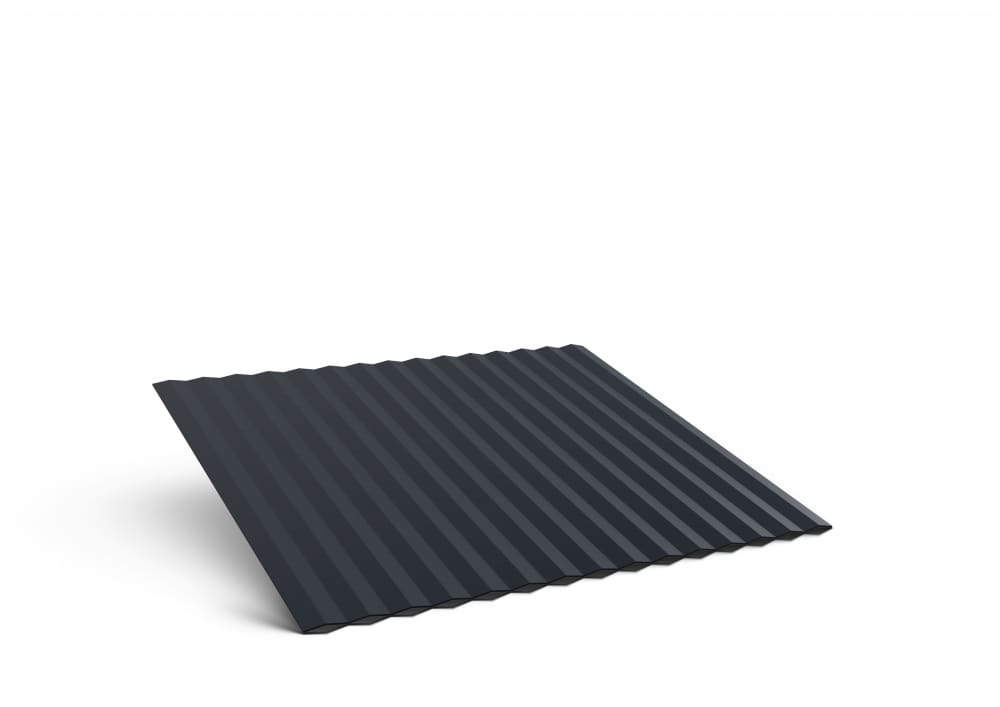

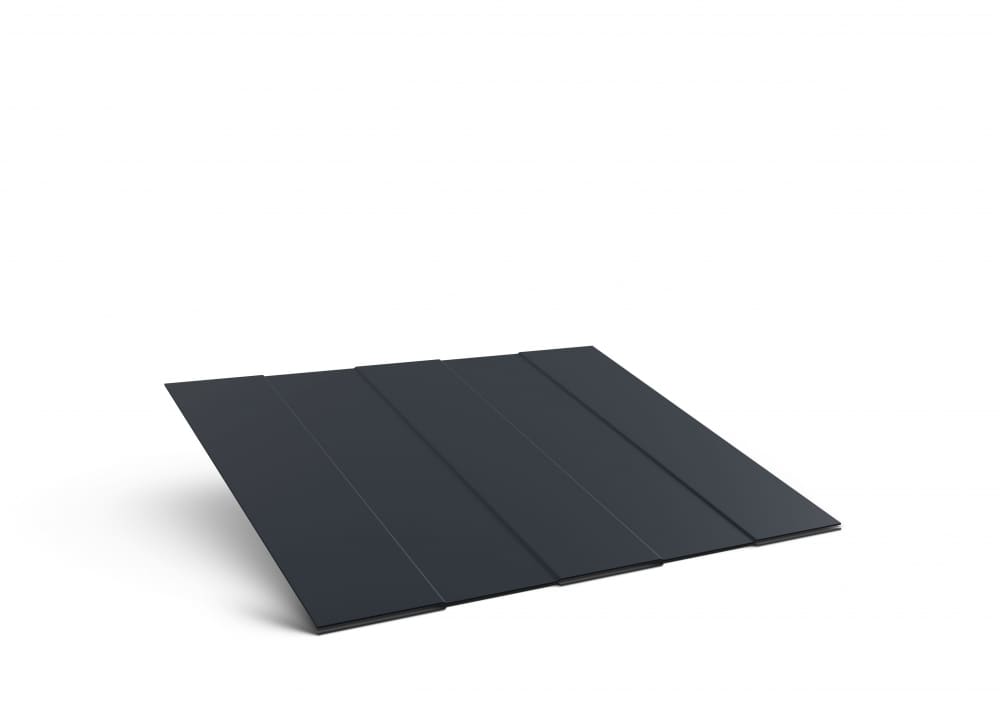

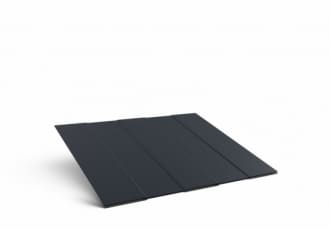

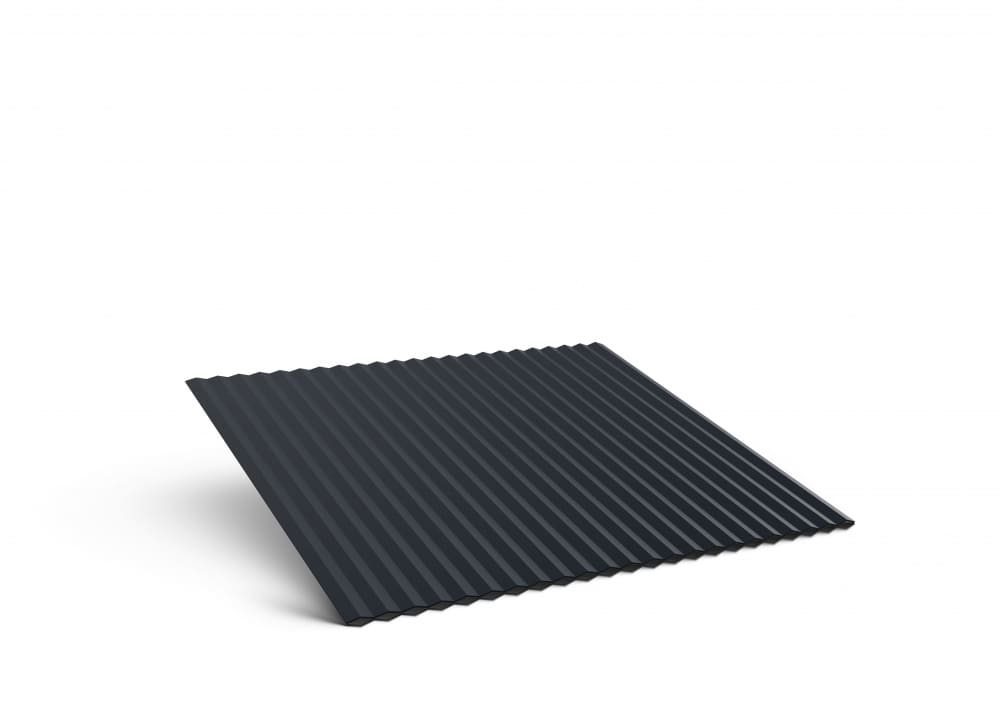

Exterior lining profiling for 1000 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy, R - Grooved
9
Exterior lining profiling for 1140 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy
10

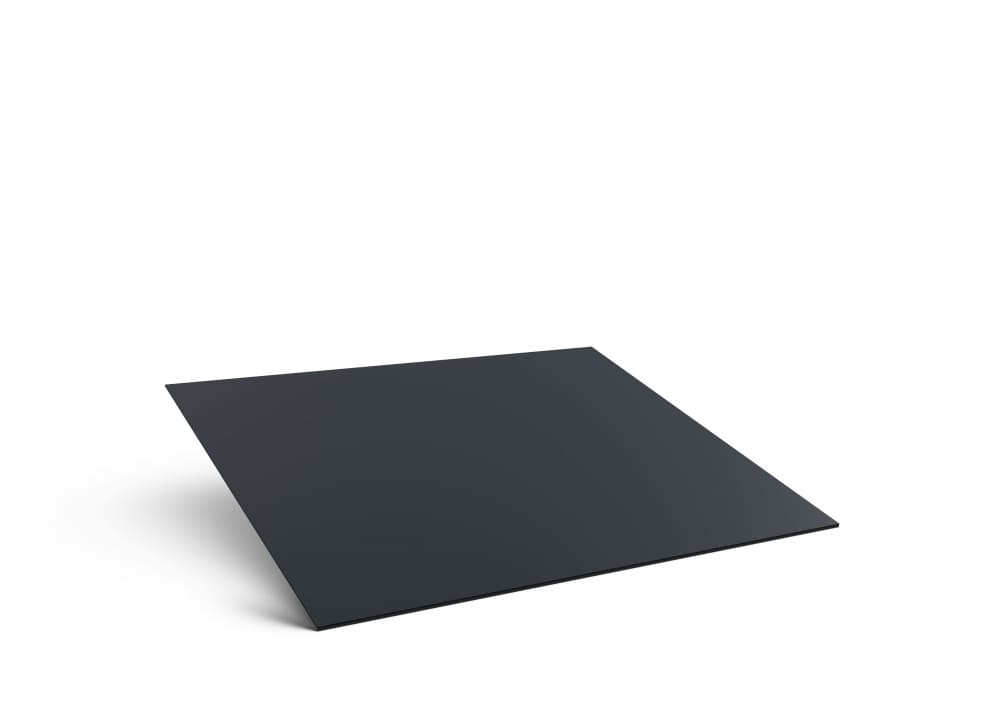

Interior lining profiling
L - Linear, P - Flat
11
Standard exterior lining colors for 1000 mm modular widths **
RAL 7016 RAL 7035 RAL 9002 RAL 9006 RAL 9007 RAL 9010
12
Standard exterior lining colors for 1140 mm modular widths **
RAL 7016 RAL 7035 RAL 9002 RAL 9006 RAL 9007 RAL 9010
13
Standard interior lining colors **
RAL 9002 RAL 9010
14
Ratio Ud,S [W/m2K] for PIR
0,22 0,18 0,14 0,11
15
Fire resistance classification ***
EI 30
16
Reaction to fire
B-s1, d0
17
Fire spread
Non Fire Spreading
18
Certificates, approvals, seals of approval

DWU CE according to EN 14509,
Hygienic Certificate,
Certificate of Business Continuity EN 14509,
Fire resistance classification

* Weight per 1 m b. for lining 0.5 / 0.5 mm (width for 1140). Detailed masses in files for download.

** Available colors depend on lining thickness

*** Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

File Download
DoP(EN), GS insPIRe CH, nr. 2022_03.pdf Download
