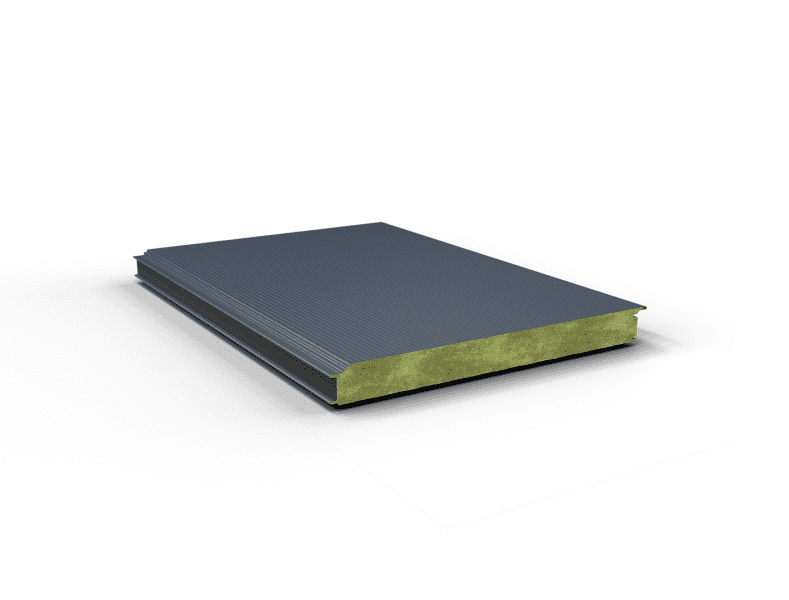

Sandwich panel GS MW U
Wall panel with a mineral wool core

GS MW U wall panels are intended for the construction of external and internal walls on a building frame. Concealed fasteners, which cannot be seen if viewed from the facade, contribute to panels being architecturally attractive and functional. Steel sheet galvanized on both sides according to EN 10346 and coated with an organic polyester coating with a coat thickness of 25 μm is used as facing. The panels can be installed both in a vertical and horizontal arrangement. They ensure maximum fire protection and excellent sound reduction.

GO TO CONTACT
Sandwich panel GS MW U <b> Wall panel with a mineral wool core </b>
Sandwich panel GS MW U

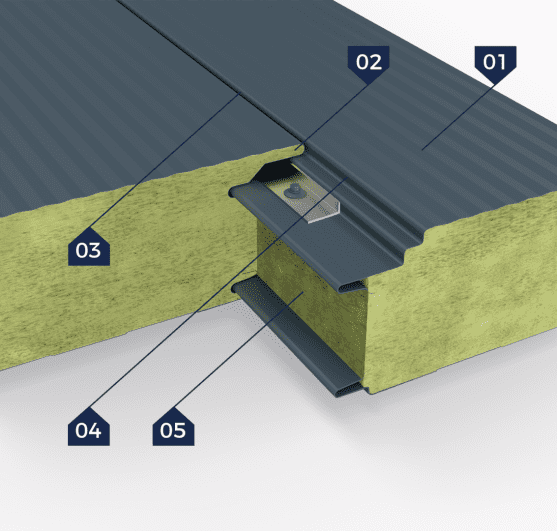

  • The profiling of the metal cladding makes the walls look aesthetically pleasing
  • Concealed fastening fastener giving facades a more uniform appearance
  • A large radius of the lock profile ensuring the integrity of protective paint coatings
  • Auxiliary groove for easy positioning of the fastening connector
  • The core of mineral wool with a very good resistance to fire and sound insulation
1
Type of core​​
Hard mineral wool
2
Declared heat transfer coefficient λD [W/m*K]
0,044
3
Thickness [mm]
80 100 120
4
Weight [kg/ m.l.] for a 0.5 / 0.6 mm cladding (module 1000 mm)*
18,2 20,3 22,4
5
U coefficient Ud,S [W/m2K] mineral wool core
0,56 0,44 0,37
6
Modular width [mm]
1000
7
Exterior lining profiling for 1000 mm modular widths **
L - Linear, M - Microfiltered, F - Wavy, R - Grooved
8
Interior lining profiling
L - Linear
9
Reaction to fire (for all end uses)
A2-s1,d0
10
Fire spread
Non Fire Spreading
11
Fire resistance classification for MAX panels ***
NPD NPD EI 120
12
Water vapor permeability
„Complies” (impervious)
13
Sound insulation
NPD NPD 32(-2;-3)
14
Standard exterior lining colors for 1000 mm modular widths **
RAL 3000 RAL 5010 RAL 6011 RAL 7016 RAL 7035 RAL 8017 RAL 9002 RAL 9006 RAL 9007 RAL 9010
15
Standard interior lining colors **
RAL 9002 RAL 9010
16
Certificates, approvals, seals of approval
EN 14509:2013, , ISO 14001

* A table with panel weights and the other corresponding facing thickness values are available in the Technical Department
** Available colors depend on lining thickness
***Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

File Download
3. DoP(EN), GS MW U, nr 2022_03.pdf Download
