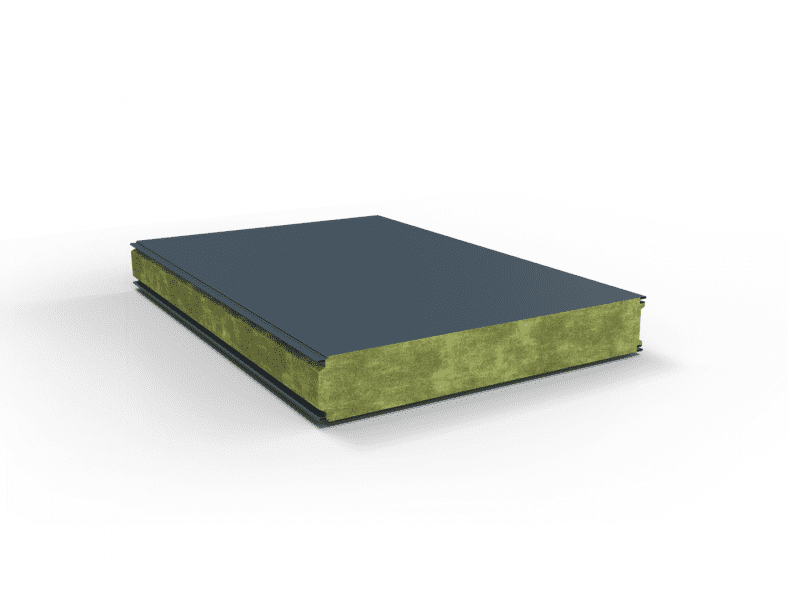

Sandwich panel GS MW CH
Wall panel with a mineral wool core

GS MW CH wall panels with visible fastening are intended for external and internal walls on a skeleton structure. Steel sheet galvanized on both sides according to EN 10346 and coated with an organic polyester coating with a coat thickness of 25 μm is used as facing. The panels can be installed both in a vertical and horizontal arrangement. They ensure maximum fire protection and excellent sound reduction



GO TO CONTACT
Sandwich panel GS MW CH <b> Wall panel with a mineral wool core </b>
Sandwich panel GS MW CH

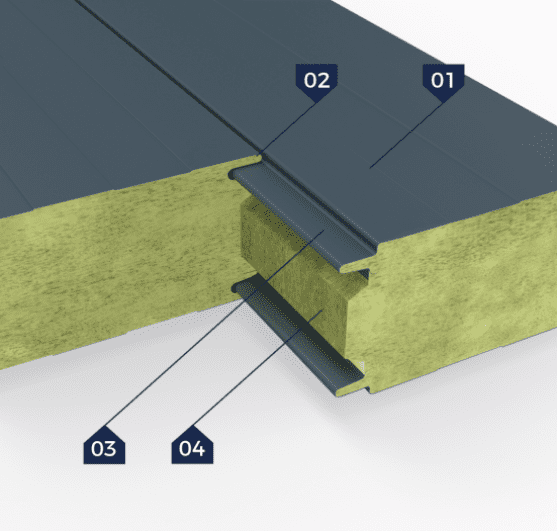

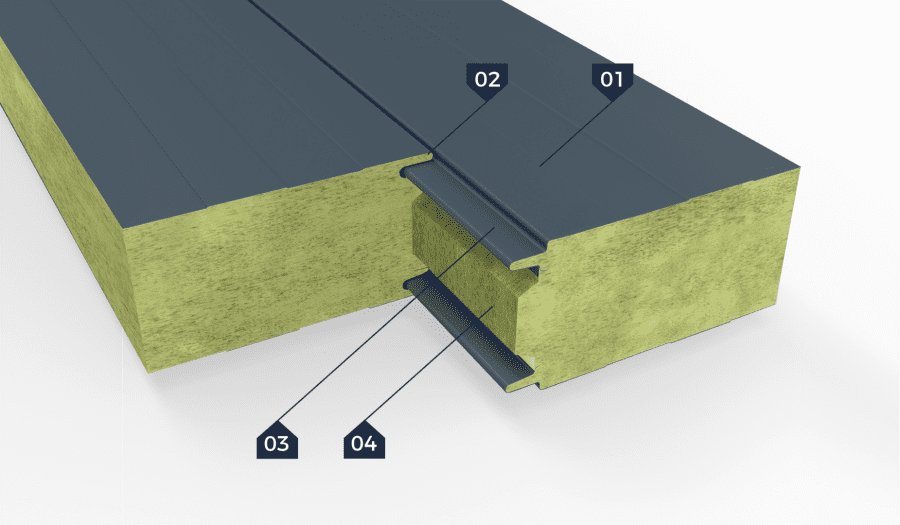

  • The profiling of the metal cladding makes the walls look aesthetically pleasing
  • A large radius of the lock profile ensuring the integrity of protective paint coatings
  • A double lock connecting the panels guaranteeing high fire-tightness properties
  • The core of mineral wool with a very good resistance to fire and sound insulation
1
Type of core​​
Hard mineral wool
2
Declared heat transfer coefficient λD [W/m*K]
0,044
3
Thickness [mm]
100 120 160 200 250
4
Weight [kg/ m.l.] for a 0.5 / 0.6 mm cladding (module 1000 mm)*
20,0 22,1 26,3 30,5 35,8
5
Weight [kg/m. l.] for a 0.5 / 0.6 mm cladding (module 1140 mm)*
22,7 25,1 29,9 34,7 40,7
6
U coefficient Ud,S [W/m2K] mineral wool core
0,43 0,36 0,27 0,22 0,17
7
Modular width [mm]
1000 / 1140
8
External profiling 1000
L - Linear, M - Microfiltered, F - Wavy, R - Grooved
9
External profiling 1140
L - Linear, M - Microfiltered, F - Wavy, R - Grooved
10
Interior lining profiling
L - Linear
11
Reaction to fire (for all end uses)
A2-s1,d0
12
Fire spread
Non Fire Spreading
13
Fire resistance classification for MAX panels ***
EI 120 EI 180 EI 180 EI 240 EI 240
14
Water vapor permeability
„Complies” (impervious)
15
Sound insulation
31(-2;-3)
16
Standard exterior lining colors for 1000 mm modular widths **
RAL 9002 RAL 9006 RAL 9007 RAL 9010
17
Standard exterior lining colors for 1140 mm modular widths **
RAL 7016 RAL 9002 RAL 9006 RAL 9007 RAL 9010
18
Standard interior lining colors **
RAL 9002 RAL 9010
19
Certificates, approvals, seals of approval
EN 14509:2013, , ISO 14001

* A table with panel weights and the other corresponding facing thickness values are available in the Technical Department
** Available colors depend on lining thickness
***Conditions in accordance with the fire resistance classification. Details of the division of fire resistance in the horizontal and vertical arrangement in Declaration of performance

File Download
8. DoP(EN), GS MW CH,S nr 2022_06.pdf Download
